APW

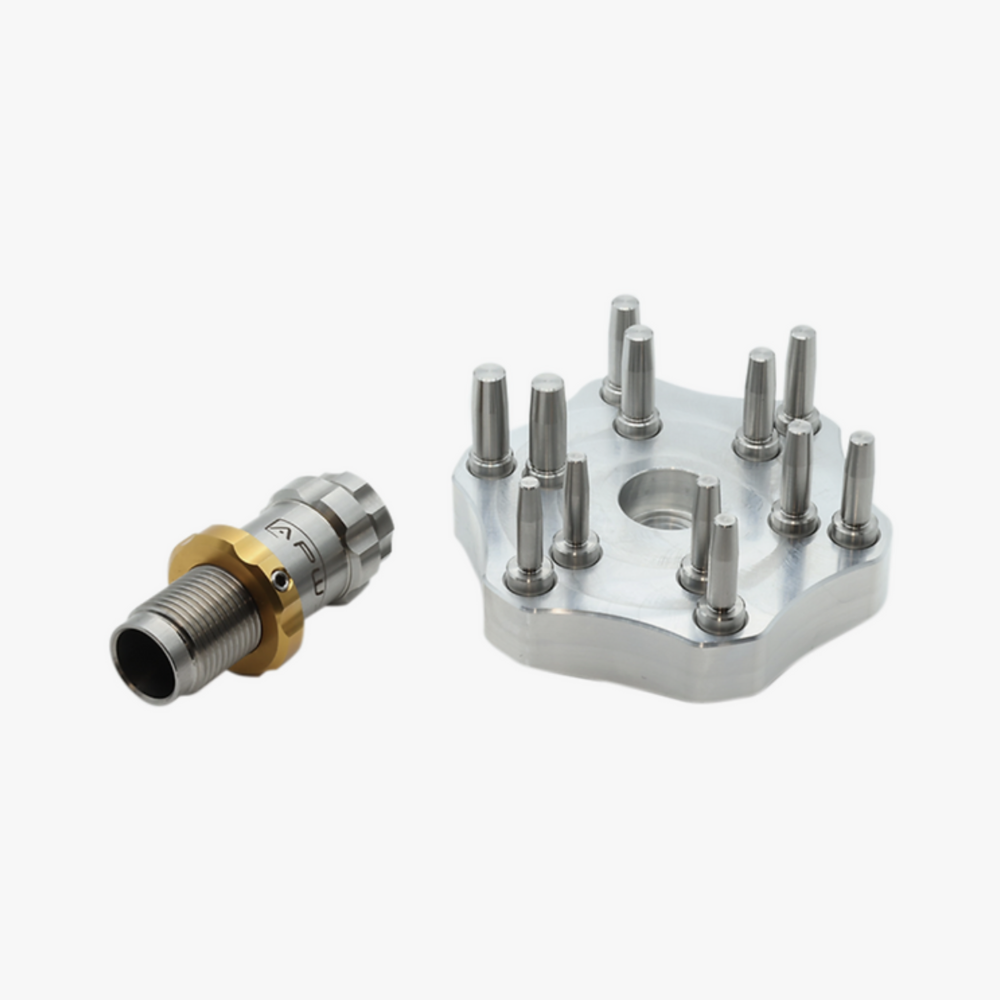

APW Expander Mandrel Set
APW Expander Mandrel Set
The APW Expander Mandrel effectively smooths and gently expands the case neck, ensuring consistent neck tension. This method has proven to be the most straightforward approach to significantly reduce Extreme Spread (ES) and Standard Deviation (SD) figures.
Available on back-order. Current lead times on out of stock sets is 12-15 working days.
The original model is the bigger body and the revamped skinny body is designed to work with the Co-Ax press. Please ask for skinny body if you have a Co-Ax press.
Couldn't load pickup availability


expander MANDREL SET BY APW
More About This Product
DESCRIPTION
Commercial die manufacturers often lack standardized specifications for the expander ball in their dies. This variance necessitates proper inside diameter sizing before seating. We recommend the complete removal of the expander ball from your resizing dies.
Your final step before powder addition should be to expand your necks using the appropriate expander mandrel. When employing the mandrels, we advise using Imperial sizing lube sparingly, as a little goes a long way. We employ a single-stage press to expand the neck on the downstroke, followed by packing the brass, now “ready for primer and powder,” into our APW reloading trays.
The die body is compatible with your standard reloading press, and the interchangeable mandrels are precisely sized. The kit comprises mandrels for achieving 0.001 or 0.002 neck tension, along with a base to maintain organization when not in use.
COMPATIBILITY
The complete set includes mandrels for the following calibers:
- .224 Cal: 0.223, 0.222
- .243 Cal (6mm): 0.242, 0.241
- .264 Cal (6.5mm): 0.263, 0.262
- .284 Cal (7mm): 0.283, 0.282
- .30 Cal (308): 0.307, 0.306
- .338 Cal: 0.337, 0.336
